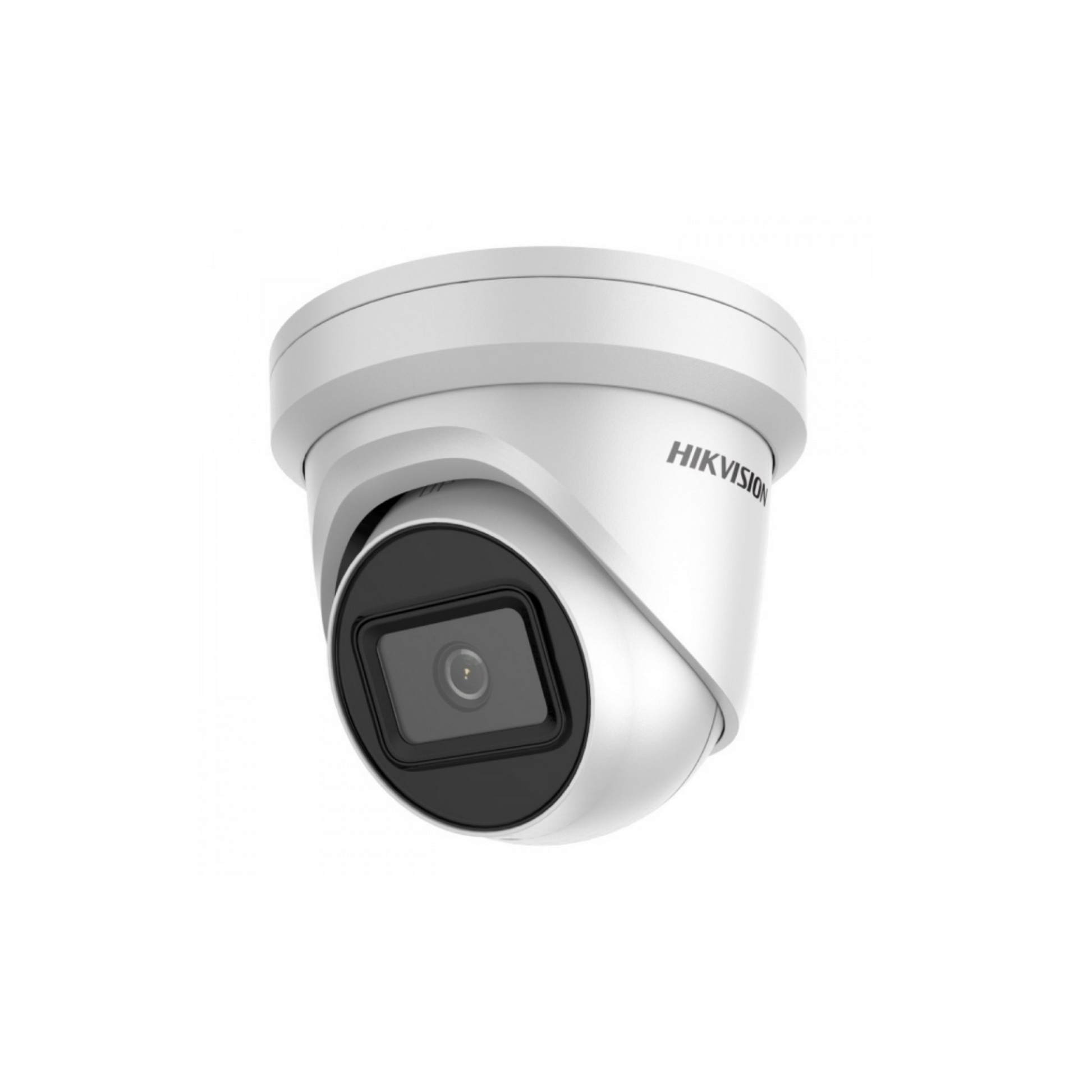

Dome Camera 2CD2385FWD-I

De Hikvision 2CD2385FWD-I Dome Camera (8MP) kan zijn omgeving slim analyseren. Zo detecteert de camera dat een object uit beeld wordt weggenomen of dat een persoon een ruimte binnenkomt. Met de True WDR van 120dB kan de camera onder alle lichtomstandigheden het juiste beeld weergeven. Tegenlicht en/of weerspiegelingen vormen zo geen belemmering.

Belangrijkste kenmerken 2CD2385FWD-I

• Tot 8 megapixels hoge resolutie
• Max. 3840 × 2160@20fps
• H.265, H.265+, H.264+, H.264
• 120dB breed dynamisch bereik
• 3D Digitale Ruisonderdrukking
• DC12V & PoE (802.3af)
• IR-bereik: tot 30 m
• Ondersteuning van ingebouwde opslag, tot 128 GB
• Water- en stof bestendig (IP67)
• Robuust design

Specificaties 2CD2385FWD-I

Camera

• Image Sensor: 1/2.5" Progressive Scan CMOS
• Min. Illumination Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR
• Shutter Speed: 1/3 s to 1/100,000 s
• Slow Shutter: Support
• Lens: 2.8 mm, horizontal field of view: 102° 4 mm, horizontal field of view: 79° 6 mm, horizontal field of view: 50° 8 mm, horizontal field of view: 40° 12 mm, horizontal field of view: 23°
• Lens Mount: M12
• Iris: F2.0
• Day & Night: IR cut filter
• DNR: 3D DNR
• Wide Dynamic Range: 120dB 3-Axis
• Adjustment Pan: 0°to 360°, tilt: 0°to 75°, rotate: 0°to 360°

• Video Compression: Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Supports
• H.265 Type: Main Profile
• H.265+: Supports
• Video Bit Rate: 32 Kbps to 16 Mbps

• Max. Resolution: 3840 × 2160
• Main Stream: 50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3840 × 2160), 30fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288) 60Hz: 30fps (1280 ×720, 640 × 360, 352 × 240)
• Image Enhancement: BLC/3D DNR
• Image Settings: Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software
• ROI (Region of Interest) Support 1 fixed region for main stream and sub stream separately
• Day/Night Switch: Auto/Scheduled

• Network Storage: Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
• Alarm Trigger: Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error
• Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
• Standard: ONVIF (PROFILE S, PROFILE G), ISAPI
• General Function: One-key Reset, Dual-VCA, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter

• Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
• On-board Storage: Built-in microSD/SDHC/SDXC slot, up to 128 GB

• Behavior Analysis: Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
• Line Crossing Detection: Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
• Intrusion Detection: Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
• Object Removal Detection: Objects removed from the pre-defined region, such as the exhibits on display.
• Unattended Baggage Detection: Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
• Face Detection: Human face appears in the image can be detected and trigger linkage method

• Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
• Power Supply: 12 VDC ± 25%, 6.5 W PoE(802.3af, 36 – 57V, class 3), 8.5 W
• IR Range: Up to 30 m
• Protection Level: IP67
• Dimensions Camera: Φ 127.3 × 95.9 mm (5.01″ × 3.78″) Package: 150 × 150 × 141 mm (5.91″ × 5.91″ × 5.55″) Weight Camera: 620 g (1.37 lb.)
